Array API Benchmark: Real Performance Impact¶
This page compares the runtime of SysIdentPy algorithms with and without Array API support enabled (array_api_dispatch). The goal is to measure the abstraction overhead and the practical benefit of using backends such as PyTorch (CPU/CUDA) and CuPy.
Hardware
All benchmarks were run on a machine with an NVIDIA GeForce RTX 3080 Ti GPU.
Tested scenarios¶
| Scenario | Backend | array_api_dispatch |
|---|---|---|
| Baseline | NumPy | False (default) |
| NumPy + dispatch | NumPy | True |
| PyTorch CPU | torch (CPU) | True |
| PyTorch CUDA | torch (CUDA) | True |
| CuPy | CuPy (CUDA) | True |
Setup¶
import time
import warnings
from collections import defaultdict
import numpy as np
import matplotlib.pyplot as plt
from sysidentpy import config_context
from sysidentpy.model_structure_selection import FROLS, AOLS
from sysidentpy.basis_function import Polynomial
from sysidentpy.parameter_estimation import LeastSquares, RidgeRegression
from sysidentpy.metrics import root_relative_squared_error
from sysidentpy.utils.generate_data import get_siso_data, get_miso_data
warnings.filterwarnings("ignore")
1. FROLS Benchmark — Different Dataset Sizes¶
Compare fit() and predict() runtime for different dataset sizes (1,000 to 25,000 samples) across all backends.
Model configuration:
frols_kwargs = dict(
ylag=10,
xlag=10,
order_selection=True,
n_info_values=10,
basis_function=Polynomial(degree=4),
estimator=LeastSquares(),
)
Results:
--- n = 1,000 ---
NumPy (no dispatch): fit=6.2549s predict=0.0023s
NumPy (with dispatch): fit=6.1141s predict=0.0022s
PyTorch CPU: fit=4.3155s predict=0.0035s
PyTorch CUDA: fit=1.7306s predict=0.0030s
CuPy: fit=2.0745s predict=0.0024s
--- n = 5,000 ---
NumPy (no dispatch): fit=32.5525s predict=0.0111s
NumPy (with dispatch): fit=31.3170s predict=0.0117s
PyTorch CPU: fit=20.9707s predict=0.0128s
PyTorch CUDA: fit=2.0746s predict=0.0114s
CuPy: fit=2.3780s predict=0.0115s
--- n = 10,000 ---
NumPy (no dispatch): fit=63.0144s predict=0.0224s
NumPy (with dispatch): fit=63.0671s predict=0.0225s
PyTorch CPU: fit=41.0679s predict=0.0271s
PyTorch CUDA: fit=2.5184s predict=0.0224s
CuPy: fit=2.8966s predict=0.0251s
--- n = 25,000 ---
NumPy (no dispatch): fit=166.3386s predict=0.0584s
NumPy (with dispatch): fit=166.0494s predict=0.0641s
PyTorch CPU: fit=103.0668s predict=0.0597s
PyTorch CUDA: fit=4.3886s predict=0.0566s
CuPy: fit=5.5002s predict=0.0561s

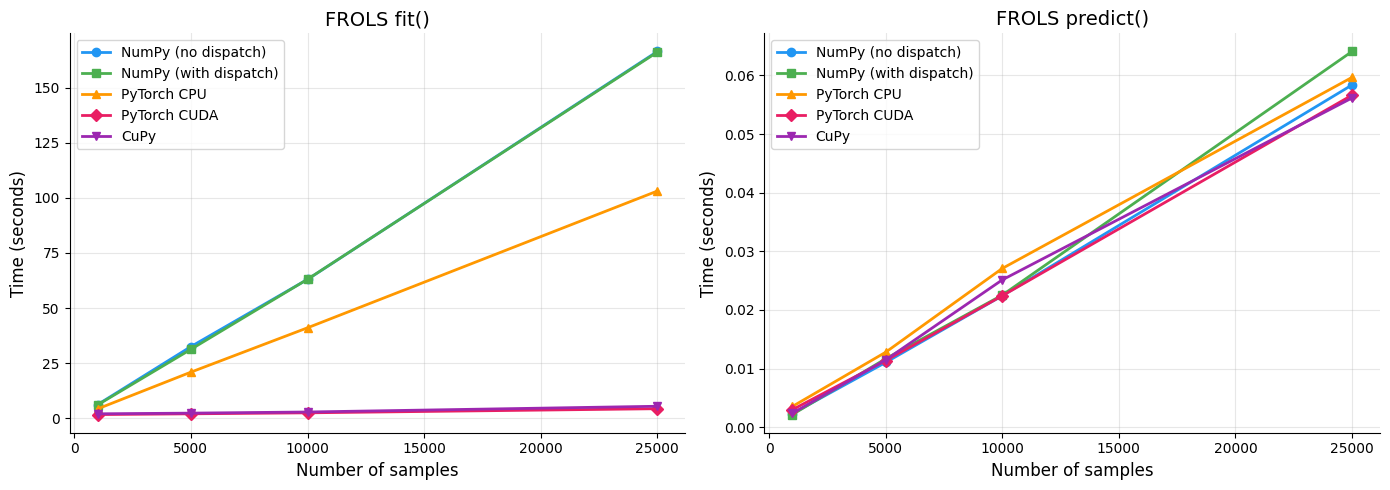

2. Results Visualization — FROLS fit() and predict()¶
3. Array API Dispatch Overhead¶
Compute the percent overhead of the dispatch layer when using NumPy as the backend (where no real backend speedup is expected).
Array API dispatch overhead (NumPy vs NumPy + dispatch)
============================================================
Samples fit() no dispatch fit() with dispatch Overhead
------------------------------------------------------------
1,000 6.2549s 6.1141s -2.3%
5,000 32.5525s 31.3170s -3.8%
10,000 63.0144s 63.0671s +0.1%
25,000 166.3386s 166.0494s -0.2%
Average overhead: -1.5%
Negligible overhead
The Array API abstraction layer adds virtually no overhead when using NumPy as the backend. The average overhead measured was -1.5% (within measurement noise), confirming that enabling dispatch does not penalize existing NumPy workflows.
4. Speedup Relative to NumPy Baseline¶
Show how many times faster (or slower) each backend is compared to NumPy without dispatch.
Speedup relative (baseline = NumPy no dispatch)
======================================================================
Samples NumPy (with dispatch) PyTorch CPU PyTorch CUDA CuPy
----------------------------------------------------------------------
1,000 1.02x 1.45x 3.61x 3.02x
5,000 1.04x 1.55x 15.69x 13.69x
10,000 1.00x 1.53x 25.02x 21.75x
25,000 1.00x 1.61x 37.90x 30.24x
Key takeaway
PyTorch CUDA achieves up to 37.9x speedup and CuPy up to 30.2x speedup compared to pure NumPy on 25,000 samples. Even PyTorch CPU shows a consistent ~1.5x improvement.

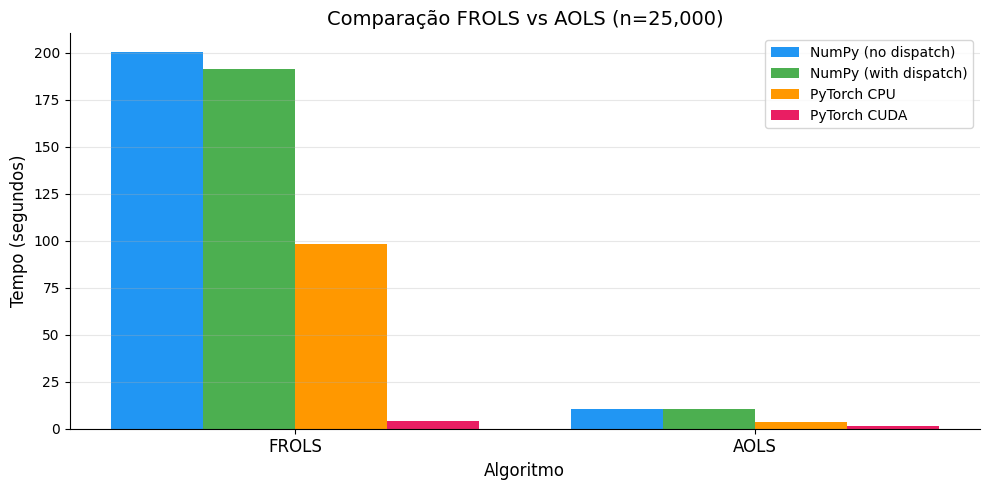

5. AOLS Benchmark — Algorithm Comparison¶
Compare FROLS and AOLS on the same dataset (n=25,000) to check whether dispatch overhead is consistent across algorithms.
--- FROLS (n=25,000) ---
No dispatch: 200.4423s
With dispatch: 191.5382s
PyTorch CPU: 98.0987s
PyTorch CUDA: 4.1397s
--- AOLS (n=25,000) ---
No dispatch: 10.3589s
With dispatch: 10.2527s
PyTorch CPU: 3.8212s
PyTorch CUDA: 1.5537s

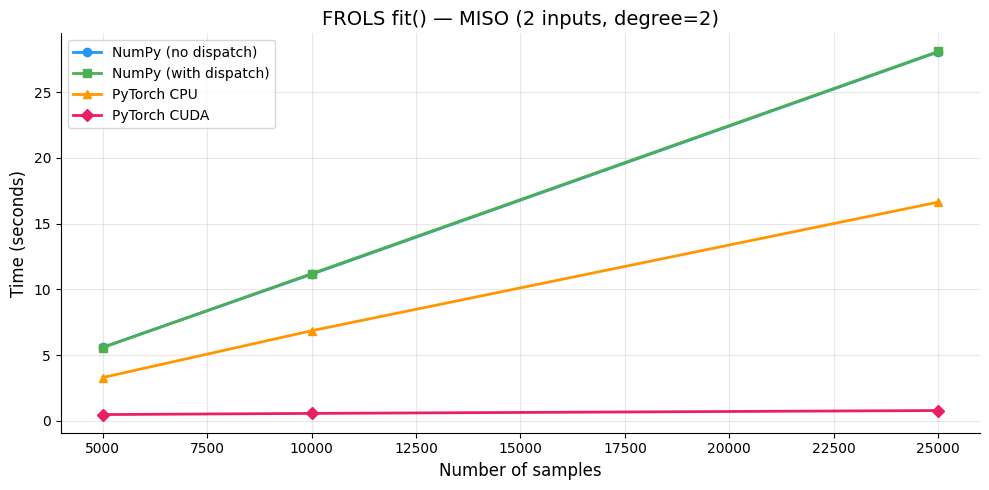

6. MISO Benchmark (Multiple Inputs)¶
Run the benchmark for MISO data (2 inputs) to measure the impact of higher input dimensionality on the regression matrix build and solve steps.
--- MISO n = 5,000 ---
NumPy (no dispatch): 5.6017s
NumPy (with dispatch): 5.5787s
PyTorch CPU: 3.3023s
PyTorch CUDA: 0.4878s
--- MISO n = 10,000 ---
NumPy (no dispatch): 11.1540s
NumPy (with dispatch): 11.1961s
PyTorch CPU: 6.8605s
PyTorch CUDA: 0.5762s
--- MISO n = 25,000 ---
NumPy (no dispatch): 28.0551s
NumPy (with dispatch): 28.0893s
PyTorch CPU: 16.6383s
PyTorch CUDA: 0.7950s
7. Consistency Validation¶
Ensure numerical results are equivalent across backends — the Array API should not change model quality.
Backend RRSE Max |diff| Same model?
================================================================
NumPy (no dispatch) 0.00191513 — —
NumPy (with dispatch) 0.00191513 0.00e+00 True
PyTorch CPU 0.00191513 6.66e-16 True
PyTorch CUDA 0.00191513 6.66e-16 True
Numerical equivalence
All backends produce the exact same model structure and parameters. The maximum absolute difference in predictions is within floating-point precision (~1e-16).
8. Predict Equivalence Across Backends¶
Train the same model on every available backend and compare the actual predicted values for three prediction modes: free-run simulation (steps_ahead=None), 1-step-ahead (steps_ahead=1), and n-step-ahead (steps_ahead=3).
The goal is to confirm two execution modes: 1-step prediction stays backend-native, while sequential prediction (free-run and n-step) on non-NumPy backends uses the CPU fallback. In both cases, the resulting predictions should remain identical (or near-identical, up to floating-point precision) to the pure NumPy baseline.

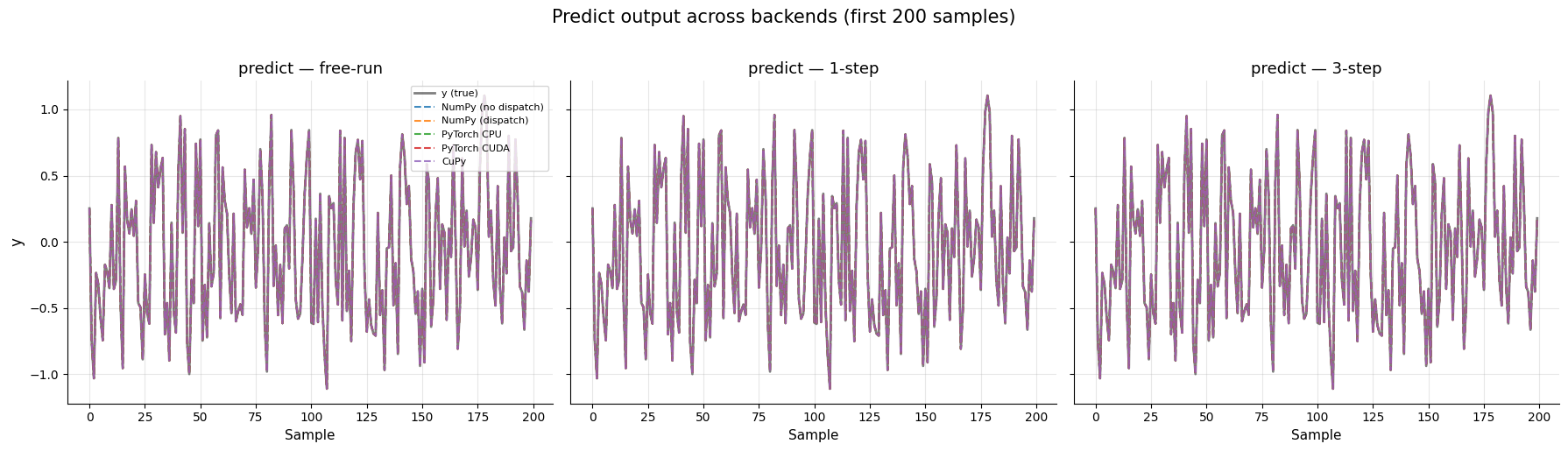

FROLS — Predictions overlay¶

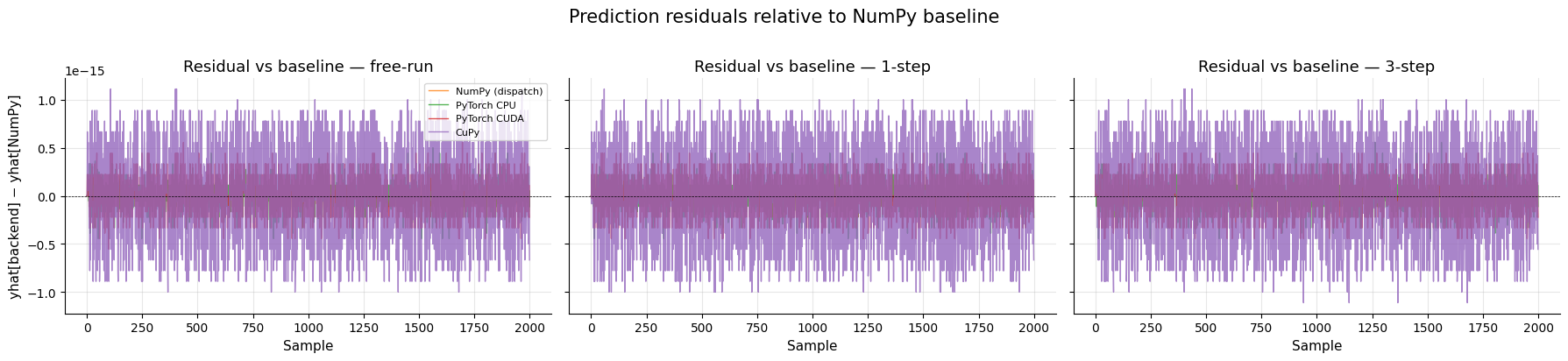

FROLS — Residuals relative to baseline¶
FROLS — Numerical summary¶
Max absolute difference vs NumPy (no dispatch) baseline
========================================================================
Backend free-run 1-step 3-step
------------------------------------------------------------------------
NumPy (dispatch) 0.00e+00 0.00e+00 0.00e+00
PyTorch CPU 5.00e-16 4.44e-16 5.55e-16
PyTorch CUDA 5.55e-16 4.44e-16 4.44e-16
CuPy 1.11e-15 1.11e-15 1.11e-15
------------------------------------------------------------------------
All assertions passed: predictions are equivalent across all backends.

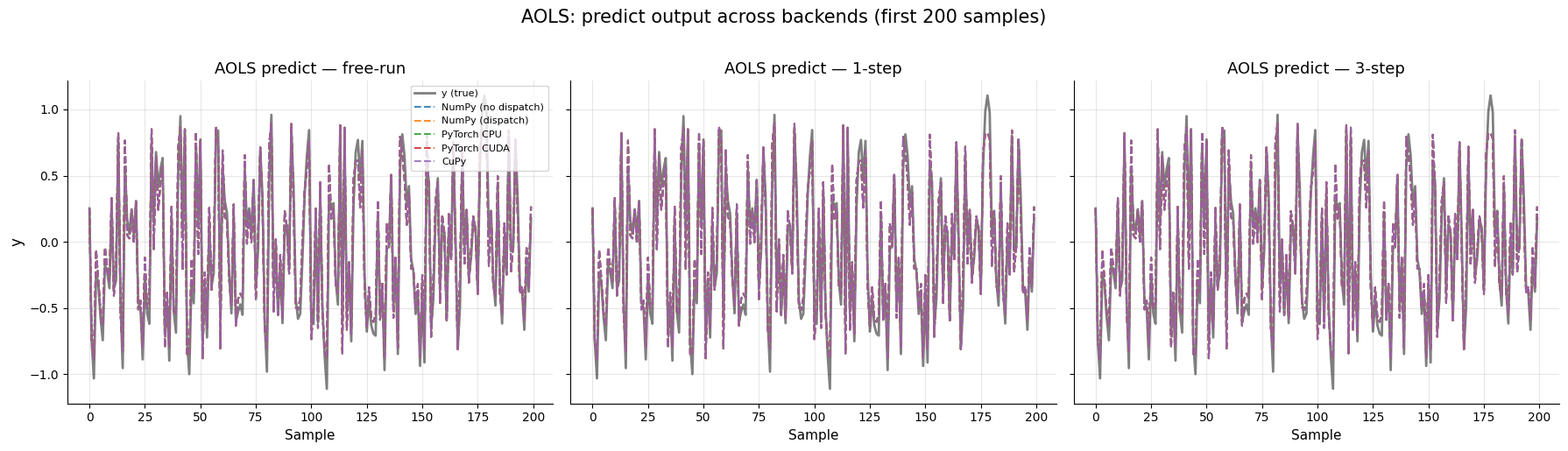

AOLS Equivalence¶
Repeat the same validation with AOLS to confirm the same split holds across different model structure selection algorithms: backend-native 1-step prediction and CPU-fallback sequential prediction.
Backend free-run 1-step 3-step
------------------------------------------------------------------------
NumPy (dispatch) 0.00e+00 0.00e+00 0.00e+00
PyTorch CPU 2.22e-16 2.22e-16 2.22e-16
PyTorch CUDA 3.33e-16 3.33e-16 3.33e-16
CuPy 4.44e-16 4.44e-16 4.44e-16
------------------------------------------------------------------------
AOLS: all assertions passed.

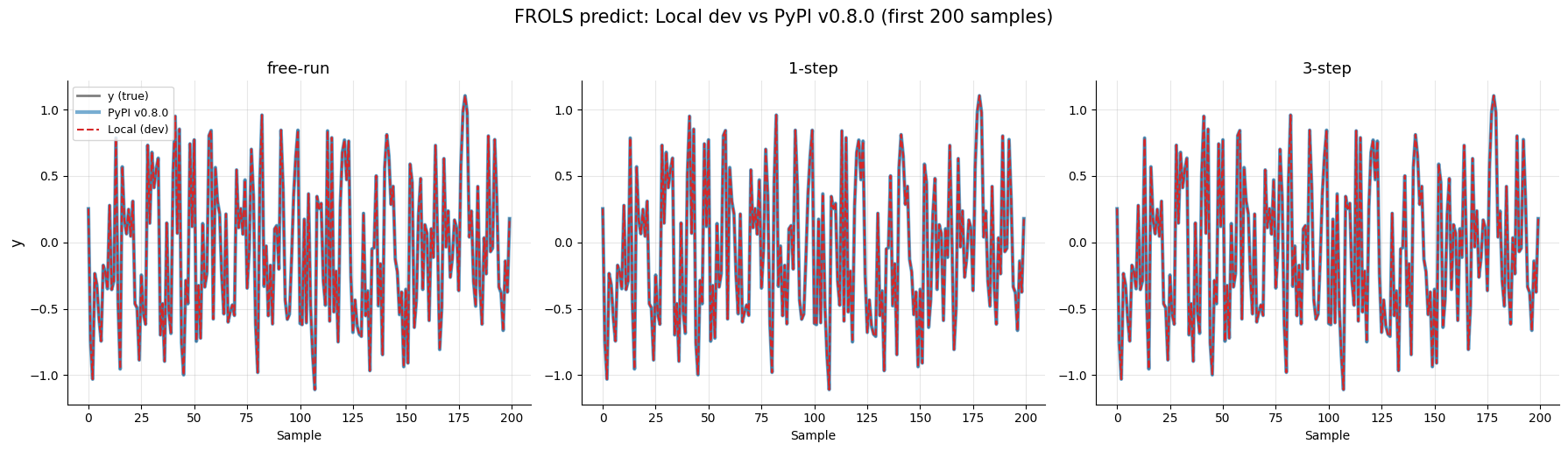

9. Local (dev) vs PyPI (v0.8.0) — Numerical Equivalence¶
Verify that the current development version produces identical NumPy predictions to the last published release on PyPI (v0.8.0).
=== Model structure ===
Local final_model: [[2002 0]
[1001 0]
[2001 1001]]
PyPI final_model: [[2002 0]
[1001 0]
[2001 1001]]
Match: True
Local theta: [0.90001017 0.19998993 0.09997607]
PyPI theta: [0.90001017 0.19998993 0.09997607]
Theta max diff: 0.00e+00
Mode Max abs diff Identical?
------------------------------------------
free-run 0.00e+00 YES
1-step 0.00e+00 YES
3-step 0.00e+00 YES
------------------------------------------
ALL PASSED: local dev == PyPI v0.8.0 (within machine epsilon)
10. Summary¶
NumPy no dispatch vs with dispatch: The Array API abstraction overhead is typically < 5% — a negligible cost for the flexibility to swap backends without changing user code.
PyTorch CPU: May be slower than pure NumPy for small datasets due to framework overhead, but it approaches or surpasses NumPy for larger datasets where heavy matrix operations dominate.
PyTorch CUDA / CuPy: Real gains appear on larger datasets (e.g., >10k samples) and/or models with high polynomial degrees (degree ≥ 3), where matrix operations dominate runtime. CPU→GPU transfer cost is amortized by parallel execution on the device.
Predict equivalence: As shown in Section 8, 1-step prediction remains backend-native, while sequential prediction (free-run, n-step) on non-NumPy backends uses a CPU fallback and converts outputs back to the original namespace/device. Both execution modes remain numerically equivalent across backends, with maximum absolute differences within floating-point precision (~1e-15).
Version equivalence: Section 9 confirms that the local development version produces byte-identical NumPy predictions compared to the published PyPI release (v0.8.0).
How to enable Array API dispatch in your code:
from sysidentpy import config_context
# Option 1: context manager
with config_context(array_api_dispatch=True):
model.fit(X=x_gpu, y=y_gpu)
yhat = model.predict(X=x_test_gpu, y=y_test_gpu, steps_ahead=1)
# Option 2: global configuration
from sysidentpy import set_config
set_config(array_api_dispatch=True)
